| Delta 7 Ascend Size |
50 |
54 |
56 |
58 |

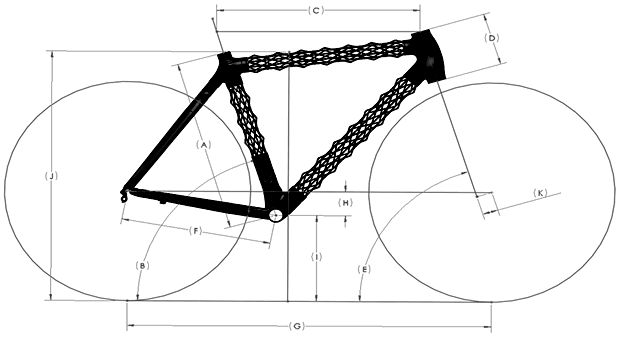

| A - Seat Tube Height (Center to Top) |
460 |
500 |
520 |
540 |
| B - Seat Tube Angle |
74 |
74 |
74 |
74 |
| C - Effective Top Tube Length |
525 |
548 |
558 |
567 |
| D - Head Tube Length |
125 |
145 |
160 |
175 |
| E - Head Tube Angle |
72 |
73 |
73 |
73 |
| F - Chainstay Length |
410 |
410 |
410 |
410 |
| H - Bottom Bracket Drop |
70 |
70 |
70 |
70 |
| G - Wheelbase |
970 |
985 |
995 |
1005 |
| I - Bottom Bracket Height |
267 |
267 |
267 |
267 |
| J - Standover Height |
715 |
750 |
775 |
790 |
| K - Fork Rake |
43 |
43 |
43 |
43 |
|
